Product Details
＋

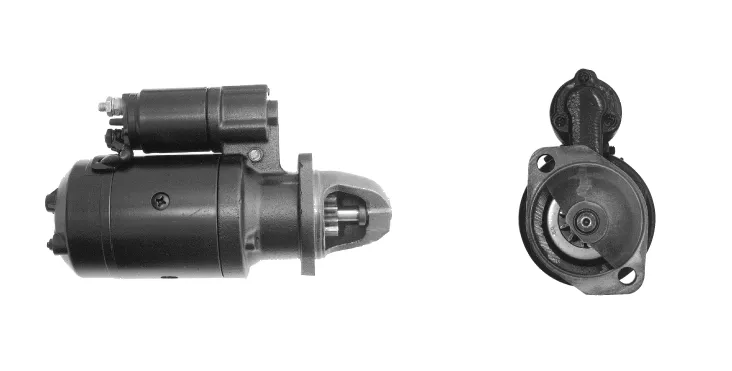

ISKRA LETRIKA (MAHLE) 11.131.140 AZJ3386 MAHLE, Letrika(Iskra) Starter Motor, 12VDC, 2.7kW MS137 IS1033
We recommend using the Reduction Gear version IS1081
Specification
| ISKRA (MAHLE) Part Number | 11.131140 AZJ3353 |
| ISKRA/LETRIKA/MAHLE | 11131140 AZJ3353 MS137 IS1033 |
| Voltage | 12VDC |
| Power | 4kW |
| No of Pinon Teeth | 11 |
| Rotation | CW |
| Unit Weight | 12kg |
| Factory Pack Qty | 1 |
Applications
| Manufacturer | Vehicle | Type | Engine | Ltr | Date | |
|---|---|---|---|---|---|---|
| BMW | D150 | 01.81-12.85 | ||||
| BMW | D150 | 01.81-12.85 | ||||
| BMW | D190 | 01.82-01.86 | ||||
| BMW | D190 | 01.82-01.86 | ||||
| BMW | D530 | 01.86-12.87 | ||||
| BMW | D530 | 01.86-12.87 | ||||
| BMW | D636 | 01.86-12.87 | ||||
| BMW | D636 | 01.86-12.87 | ||||
| CUMMINS | EL 250 | 4,2L | 01.04- | |||
| CUMMINS | EL 300 | 4,2L | 01.04- | |||
| CUMMINS | ES 250 | 4,2L | 01.04- | |||
| CUMMINS | ES 300 | 4,2L | 01.04- | |||
| HATZ | Engine | 2L41C | - | |||
| HATZ | M - Series | 2-4L/M41 | - | |||
| HATZ | M - Series | 2M41 | 2-Cyl | 1.7 | - | |
| HATZ | M - Series | 3M41 | 3-Cyl | 2.6 | - | |
| HATZ | M - Series | 3M43-EGR/DPF | 3-Cyl | 2.6 | - | |
| HATZ | M - Series | 4M41 | 4-cyl | 3.4 | - | |
| HATZ | M - Series | 4M42-EGR | 4-cyl | 3.4 | - | |
| HATZ | M - Series | 4M43-EGR/DFP | 4-cyl | 3.4 | - | |
| LEE BOY | SPREADERS | SAND Spreader | 3-cyl. | 01.80- | ||
| MERCRUISER | 530D-TA | VM | 3.0 | - | ||
| MERCRUISER | 636D-TA | VM | 3.6 | - | ||
| MERCRUISER | D183 | VM | 3.0 | - | ||
| MERCRUISER | D219 | VM | 3.6 | - | ||
| MERCRUISER | D254 | VM | 4.2 | - | ||
| MERCRUISER | EH700 | VM | 6.5 | - | ||
| VM MOTORI | 694HT10 | 4.2 | - | |||
| VM MOTORI | HR | 692 HI 9 | - | |||
| VM MOTORI | HR | 692HT9 | 4.2 | 01.81- |
Cross Reference
| Manufacturer | Manufacturer P/N |
|---|---|
| BMW | 12 41 1 333 980 |
| BOSCH | 0001358027 |
| BOSCH | 0001359007 |
| BOSCH | 0001359060 |
| BOSCH | 0001362303 |
| BOSCH | 0001362304 |
| BOSCH | 0001367008 |
| BOSCH | 0986017970 |
| HATZ | 000050476102 |
| HATZ | 50476102 |
| HATZ | 504761021053 |
| LESTER | 18236 |
| LESTER | 18943 |
| LUCAS | LRS01202 |
MAHLE -> MAHLE
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1033 | 11.139.293 AZJ3901 12V 2,7kW | MS 137 A | Superseded unit, see available P/N IS1033 |
| IS1033 | 11.131.170 AZJ3390 12V 2,7kW | Superseded unit, see available P/N IS1033 | |
| IS1033 | 11.131.140 AZJ3386 12V 2,7kW | MS 137 | Available |
| IS1033 | 11.130.736 AZJ3258 12V 2,7kW | Superseded unit, see available P/N IS1033 |
Spare Parts
| Pos. | Letrika P/N | MAHLE P/N | Description |
|---|---|---|---|
| 1 | 16.281.966 | MSX 407 | Drive end bracket |
| 2 | 15.120.243 | MSX 684 | Bearing |
| 3 | 16.281.299 | MSX 379 | Central cover |
| 4 | 16.905.240 | MSX 1217 | Switch |
| 6 | 16.902.074 | MSX 769 | Pinion with clutch |
| 7 | 16.905.853 | MSX 370 | Lever |
| 9 | 16.361.499 | MSX 326 | Armature |
| 10 | 15.120.155 | MSX 697 | Bearing |
| 11 | 16.906.142 | MSX 371 | Fixing set |
| 12 | 16.906.171 | MSX 177 | Stator |
| 13 | 16.905.972 | MSX 255 | Brush holder |
| 14 | 16.905.973 | MSX 175 | Set of brushes |
| 15 | 16.908.098 | MSX 606 | Rear-end bracket |
